OD |
21.3mm -660mm |
|
W.T |
1mm-20mm |
|
LENGTH |
0.5mtr-22mtr |
|
Surface |
Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement |
|
Standard |
API5L, ASTM A53 GR.B, ASTM A178, ASTM A500/501, ASTM A691, ASTM A252, ASTM A672, EN 10217; API SPEC 5L ISO 3183 GB/T 9711.1 GB/T 9711.2 GB/T 9711.3 |
|
Ends |
Square Ends (straight cut, saw cut) Beveled Ends |
Longitudinally Submerged Arc Welding Pipe is subdivided into UOE, RBE, JCOE steel pipe according to its different forming methods. Longitudinal high-frequency welded steel pipe has the characteristics of relatively simple process and fast continuous production, and has wide use in civil construction, petrochemical, light industry and other sectors. Mostly used to transport low pressure fluids or made into various engineering components and light industrial products.
|
UOE LSAW PIPES |
|
Outside Diameter：Φ508mm- 1118mm (20"- 44") |
|
Wall Thickness: 6.0-25.4mm 1/4"-1" |
|
Quality Standards: API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA |
|
Length: 9-12.3m (30'- 40') |
|
Grades: API 5L A-X90,GB/T9711 L190-L625 |
|
JCOE LSAW PIPES |
|
Outside Diameter：Φ406mm- 1626mm (16" - 64" ) |
|
Wall Thickness：6.0- 75mm (1/4" - 3" ) |
|
Quality Standards：API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA |
|
Length：3-12.5m ( 10'- 41' ) |
|
Grades：API 5L A-X100, GB/T9711 L190-L690 |

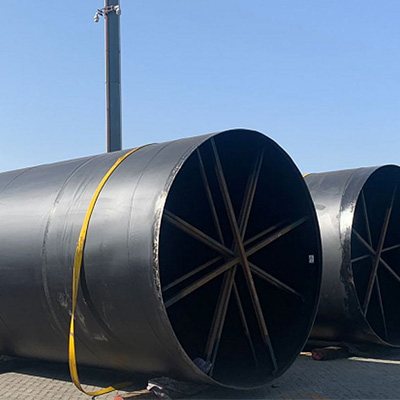

SSAW spiral welded pipe is made of strip steel coil as raw material, extruded at normal temperature and welded by automatic double-wire double-sided submerged arc welding process, which has high compressive strength, high impact strength, high safety performance and long service life.
|
SSAW Steel Pipe |
|
Outside Diameter：OD: 219.1mm-3500mm |
|
Wall Thickness:6mm-25mm |
|
Length: 3-18M |
|
Surface: Bare, Lightly Oiling, Black Painting, Anti-corrosion Coating (FBE / 2PE / 3PE) |
|
Packing: In Bulk, Ends Protector on Both Sides, Waterproof Materials Wrapped |
|
Application : water pipe, steel piling, oil and gas pipes, steel pipelines , etc. |
