Hard Seal Trunnion Mounted Ball valve
Design and Manufacture: API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 2”~48”
Pressure Ratings: 150LB-2500LB(PN1.6-PN42.0MPa)
Temperature Range: -196℃~650℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092,GB/T12224
Face to Face Dimension: ASME B16.10,GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Soft Seal Trunnion Mounted Ball Valve
Design and Manufacture:API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 2"~48"
Pressure Ratings: 150LB-2500LB(PN1.6-PN10.0MPa)
Temperature Range: -196℃~200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092,GB/T12224
Face to Face Dimension: ASME B16.10,GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Soft Seal Floating Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292,GB/T12237,GB/T1967
Size Range: 1/2"~10"
Pressure Ratings: 150LB-2500LB(PN1.6-PN42.0MPa)
Temperature Range: -196℃~200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092,GB/T12224
Face to Face Dimension:ASME B16.10,GB/T12221,JB 1686, EN 588
Inspection and Testing:API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
FS Soft Seal Floating Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 1/2"~4"
Pressure Ratings: 150LB-900LB(PN1.6-PN15.0MPa)
Temperature Range: -196℃~200℃
End Connections: ASME B16.11, ASME B16.25, GB/T12224
Face to Face Dimension: Manufacturer standard
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Hard Seal-Floating Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 1/2"~10"
Pressure Ratings: 150LB-2500LB(PN1.6-PN42.0MPa)
Temperature Range: -196℃~650℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092,GB/T12224
Face to Face Dimension: ASME B16.10,GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Full Welded Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 2"~40"
Pressure Ratings: 150LB-2500LB(PN1.6-PN42.0MPa)
Temperature Range: -196℃~200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092,GB/T12224
Face to Face Dimension: ASME B16.10,GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Top Entry Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 2"~10"
Pressure Ratings: 150LB-900LB(PN1.6-PN15.0MPa)
Temperature Range: -196℃~200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092,GB/T12224
Face to Face Dimension: ASME B16.10,GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Three Way&Four Way Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 1/2"~8"
Pressure Ratings: 150LB(PN1.6-PN4.0MPa)
Temperature Range: -29℃~350℃
End Connections: ASME B16.5 , JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092
Face to Face Dimension: Manufacturer standard
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Flange High Temperature Ball Valve
Design and Manufacture:API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 1/2"~8"
Pressure Ratings: 150LB(PN1.6-PN2.5MPa)
Temperature Range: -196℃~300℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092,GB/T12224
Face to Face Dimension: ASME B16.10,GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Thin Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292
Size Range: 1/2”~8”
Pressure Ratings: 150LB(PN1.6-PN2.5MPa)
Temperature Range: -196℃~350℃
End Connections: ASME B16.5 , EN1092
Face to Face Dimension: ASME B16.10, EN 588
Inspection and Testing: API 6D,API 598
Heating Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292,GB/T12237,GB/T19672
Size Range: 1/2"~10"
Pressure Ratings: 150LB-600LB(PN1.6-PN10.0MPa)
Temperature Range: -196℃~200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113,HG/T20529,HG/T20615,EN1092,GB/T12224
Face to Face Dimension: ASME B16.10,GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598,JB/T9092,GB/T13927,GB/T26480
Inspection and Testing: API 598 and other standard
Casting Gate Valve
Design and Manufacture: DIN3352,API 6D,ASME B16.34,API600,GOST5762-2002
Size Range: DN40-1400,1/2"~60"
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB,
End Connections: EN1092,ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10, API 6D,GOST3706-93
Inspection and Testing: DIN 3230,API 598,GOST356-80
Cast Iron Gate Valve
Design standard conform to: ANSI/AWWA C509
Face to face conform to: ASME B16.10
Pipe connection conform to: ASME B16.1 CLASS125 ANSI/AWWA C111/A21.11 AWWA C606
Pressure testing standard conform to: ANSI/AWWA C509
Actuator: 2 "AWWA operating nut or hand wheel, chain wheel, gearbox, etc.
Inspection and Testing: API 598 and other standard.
Casting Check Valve
Design and Manufacture: DIN3356,API 6D,ASME B16.34,BS1868,GOST5762-2002
Size Range: DN40-1400,2"~48"
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB
End Connections: EN1092,ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10,API6D, API594,GOST3326-86
Inspection and Testin: DIN 3230,API 598,GOST356-80
Working Pressure:PN10/16
Double Flange Double Eccentric Butterfly Valve
Design standard Conform To:EN 593
Connection flange conform To:EN1092-2, ISO7005-2
Top flange conform to:ISO 5211
Face to face conform to:EN 558 Series 14
Test standard conform to:EN12266-1
Nominal working pressure:PN10/PN16/PN25/PN40
AWWA C504 Butterfly Valve
Design Standards:AWWA C504/AWWA C516
Connection Flange:ASME B16.1 Class 125 AWWA C111/A21.11
Top Flange:MSS SP-101/ISO 5211
Face to Face:AWWA C504/AWWA C516
Test Standard:AWWA C504
Tripple Offset Meatal Seated Bufferfly Valve
Size Range:3"~128" (80mm~3200mm)
Pressure Class:150lb~1500lb(PN25~PN260)
Temperature Range:-196℃~+650℃(-321℉~+1202℉)
Connection Type:wafer,lug,double flange,butt -welded
Drive Type:Worm gear, Pneumatic, Electric,Hydraulic
High Performance Butterfly Valve
Pressure:Classl50, Class300
Size:Basic type: 2”-48”(50mm -1200mm)
Fire safety type: 2”- 60”(50mm -1500mm)
Temperature:-196°C ~ +650°C (-321 ℉~+1202℉)
Connection Type:wafer, lug
Drive Type:manual, worm gear, pneumatic, electric
Applicable Medium: corrosive chemical media, water, gas, acid, alkali, steam, pharmaceutical, etc.
Forged Globe Valve
Body Construction: T-type,Y-type,Angel type.
Bonnet Design: Bolted bonnet, Welded bonnet, Pressure sealed bonnetInspection and Testing: API 598 and other standard

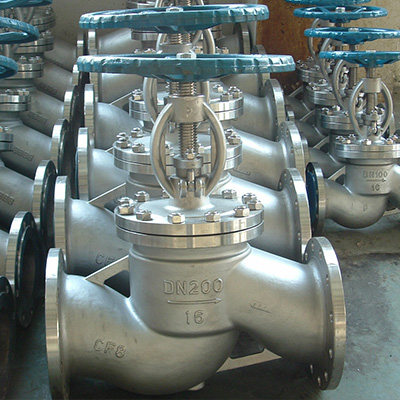

Casting Globe Valve
Design and Manufacture: DIN3356,API 6D,ASME B16.34,GOST5762-2002
Size Range: DN40-1400,2"~24"
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB
End Connections: EN1092,ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10, GOST3706-93
Inspection and Testing: DIN 3230,API 598,GOST356-80
